Description

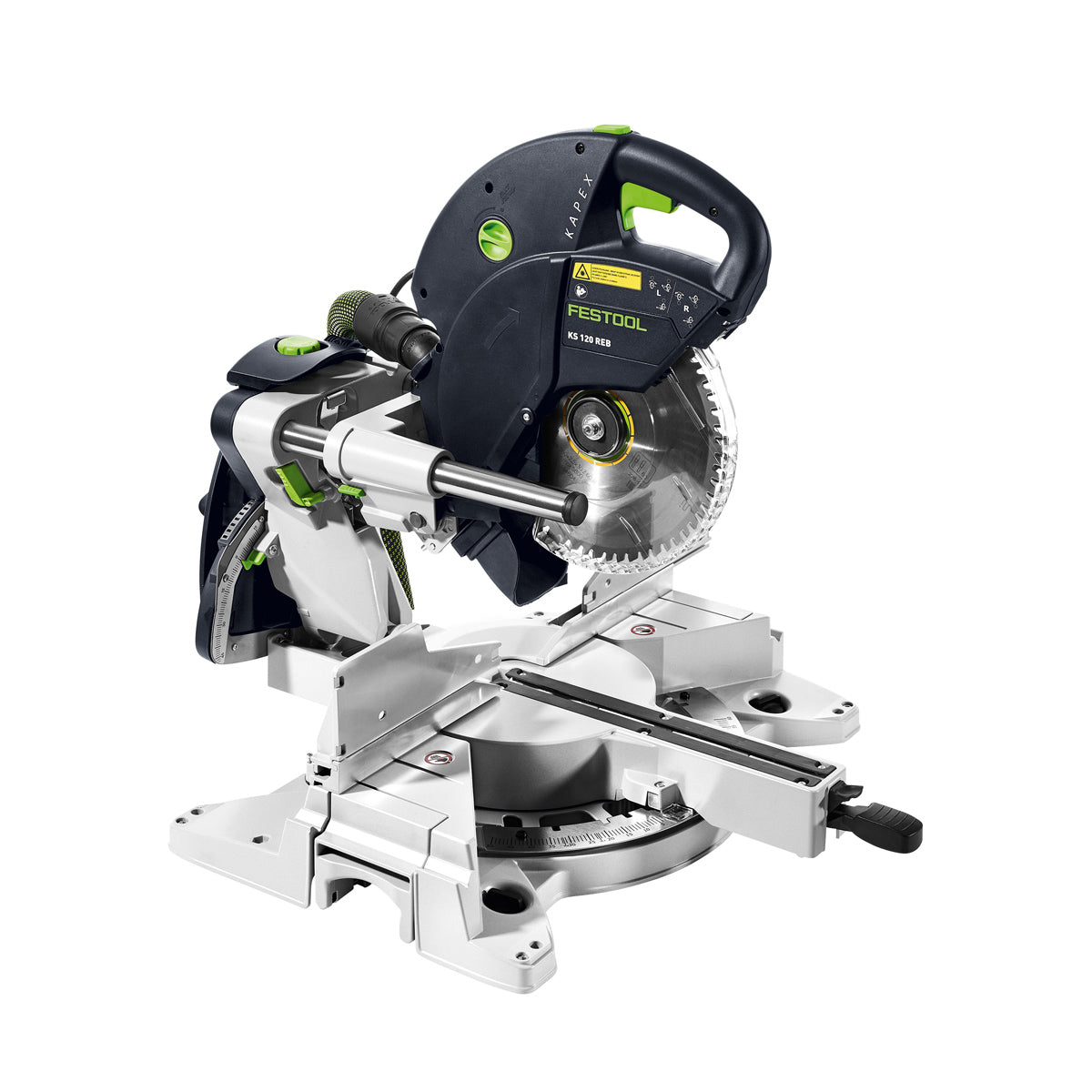

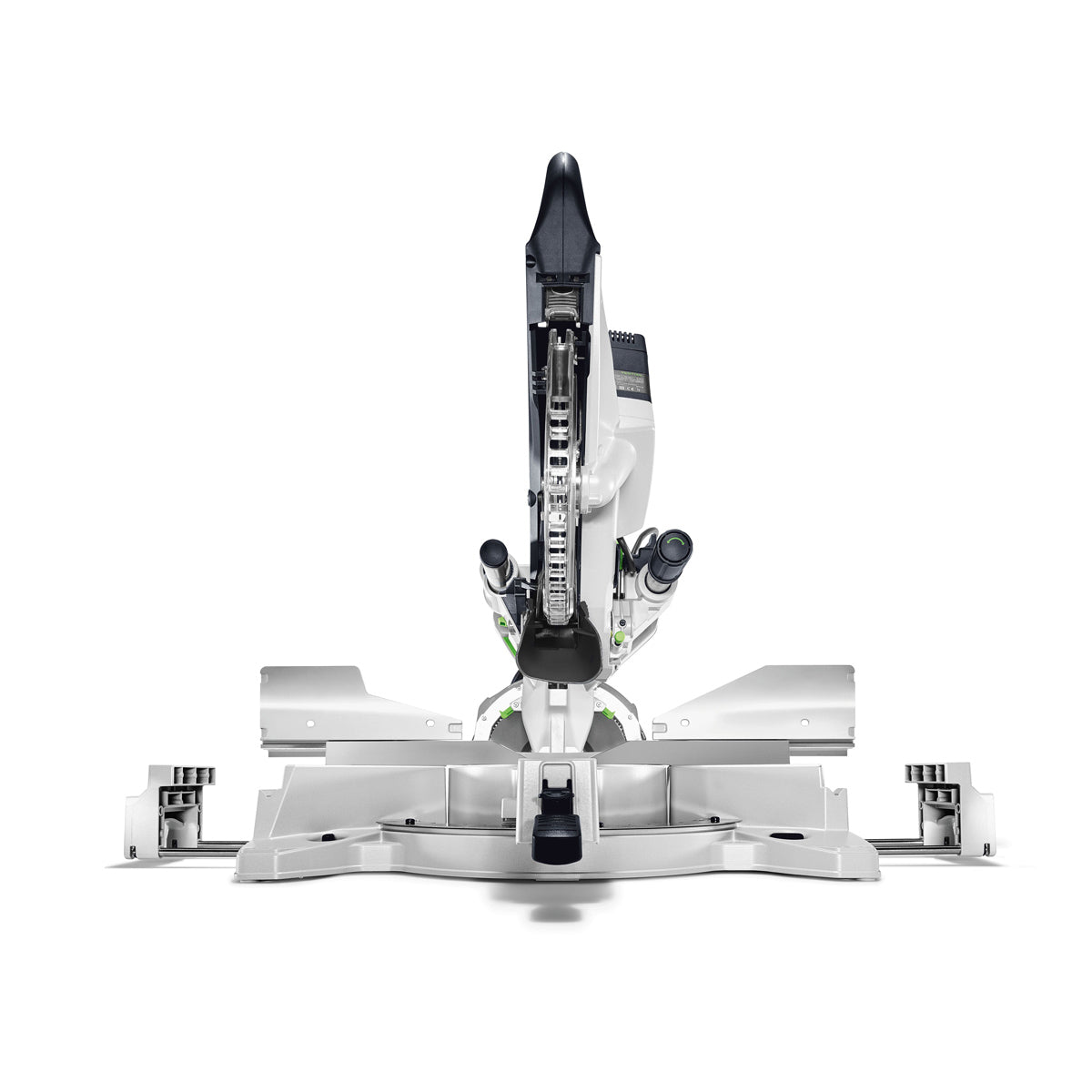

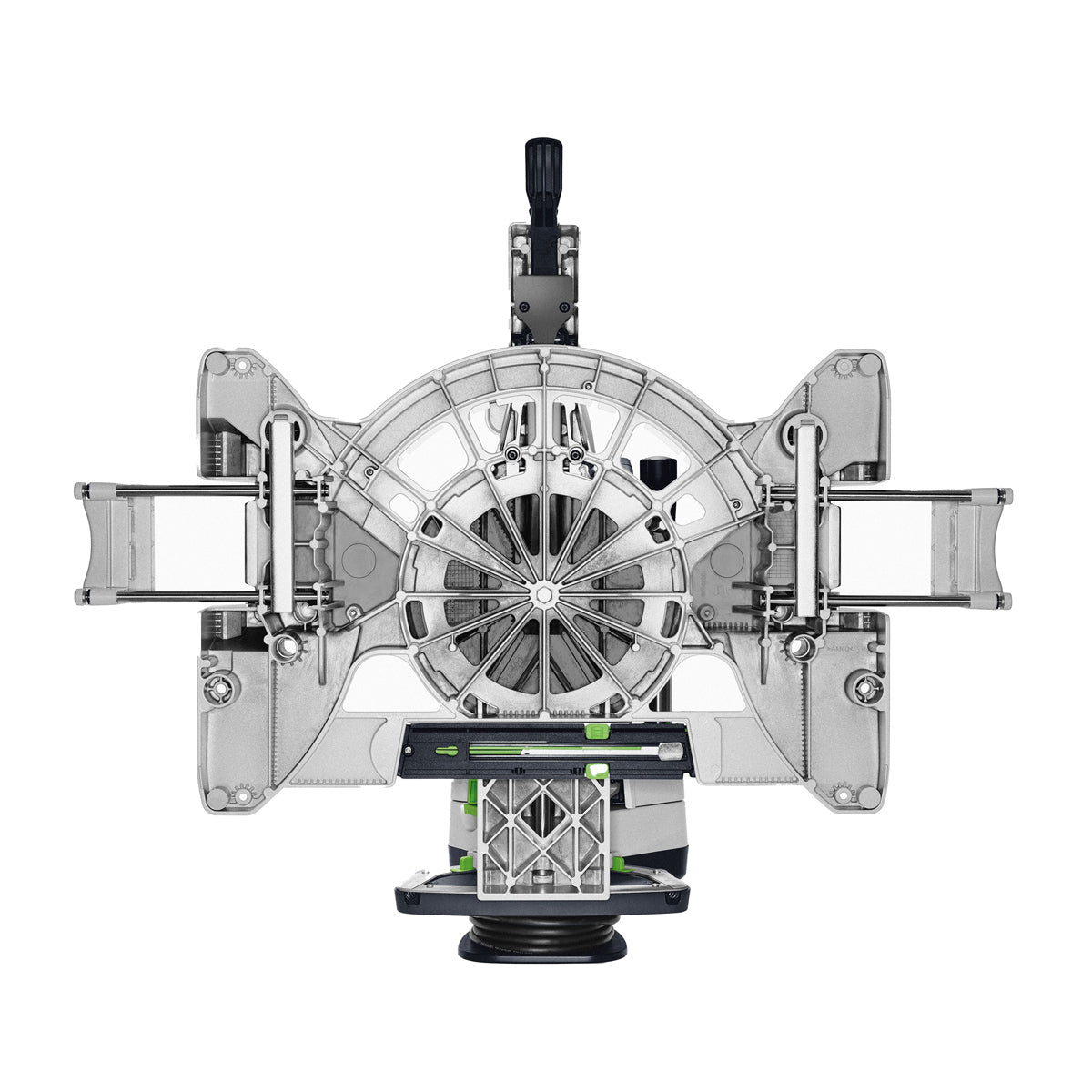

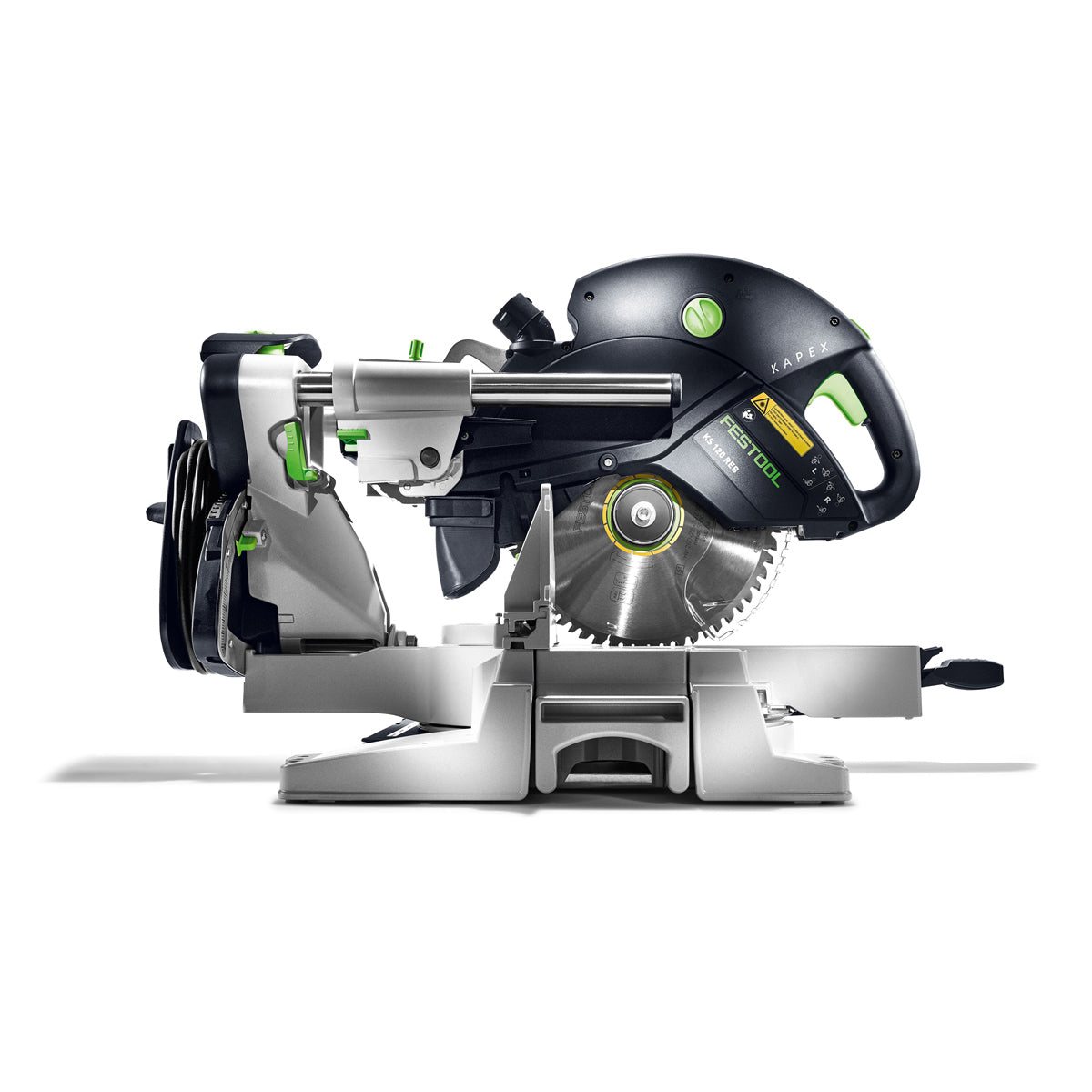

Festool 575307 KS 120R KAPEX 260mm Slide Compound Mitre Saw
Guides left, guides right. Featuring spherical bushings on both sides to offer a double layer of protection in terms of keeping the carriage precisely on course across extra-large columns. Double-sealed for an extremely long service life, always exact and with zero play.
Main Applications:
- Trimming skirting boards and cornices up to 120 mm in height – no calculations

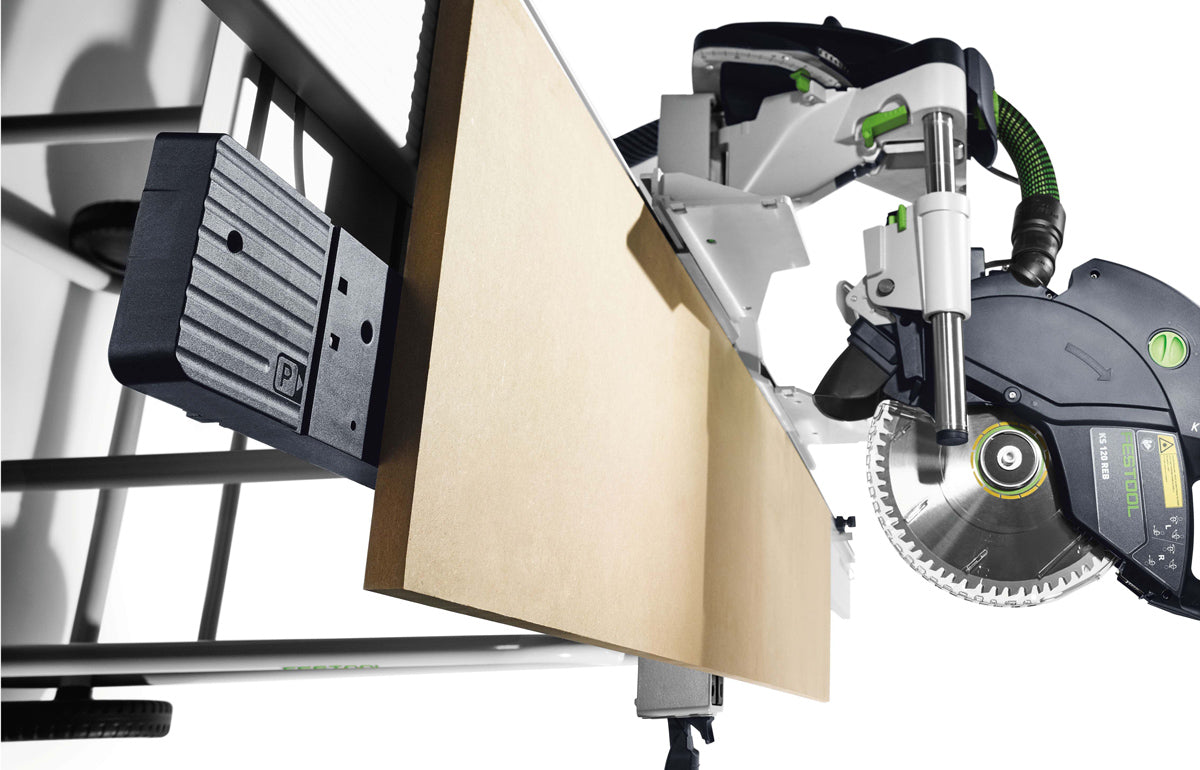

- Cutting boards and panels up to 305 x 88 mm
- Trimming crown mouldings up to 168 mm in their original wall position
- Trimming square timber and beams up to 88 mm thick
Tech Data:
- Tool Weight (kg): 23.1 kg
- Cutting Depth at 45°/90° (mm): 215 mm x 88 mm
- Cutting Capacity at 90° (mm): 305 mm x 88 mm
- Cutting Depth 45°/45° Left (mm): 215 mm x 55 mm
- Cutting depth 45°/45° Right (mm): 215 mm x 35 mm
- Cutting Depth 90°/90° (mm): 60 mm x 120 mm
- Crown Moulding Mitre Cut at 45° (mm): 168 mm
- Mitre Angle (°): 50° / 60°
- Dimensions W x D x H (mm): 713 mm x 500 mm x 470 mm
- Inclination Angle (°): 47° / 47°
- No Load Speed (rpm): 1,400 rpm – 3,400 rpm
- Saw Blade Diameter (mm): 260 mm
- Dust Extraction Connection Diameter (mm): 27 mm / 36 mm
- Power Lead Type: Fixed Lead
- Power Source: Corded
- Power Consumption (W or kW): 1,600 W
- Motor Type: Brushed

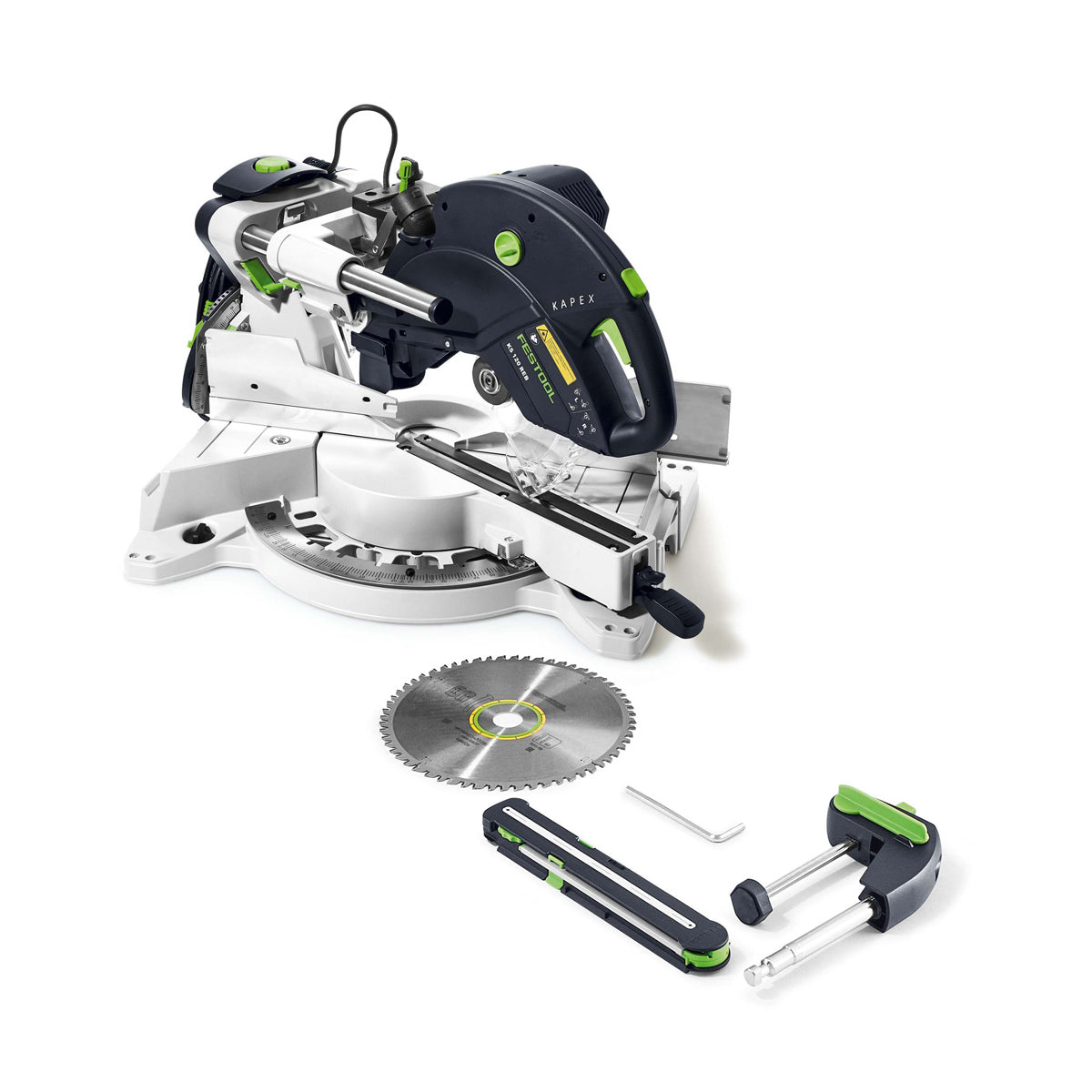

Includes:
- KS 120 R Sliding Compound Mitre Saw
- Universal Saw Blade HW W60

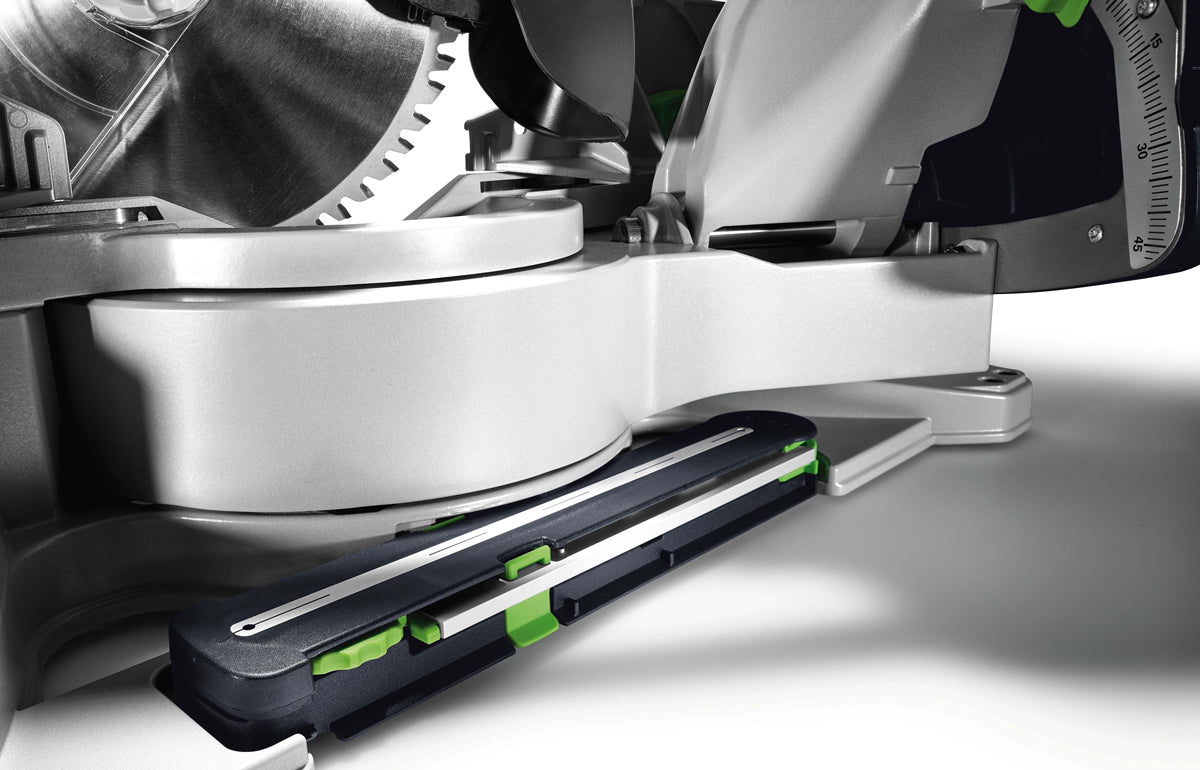

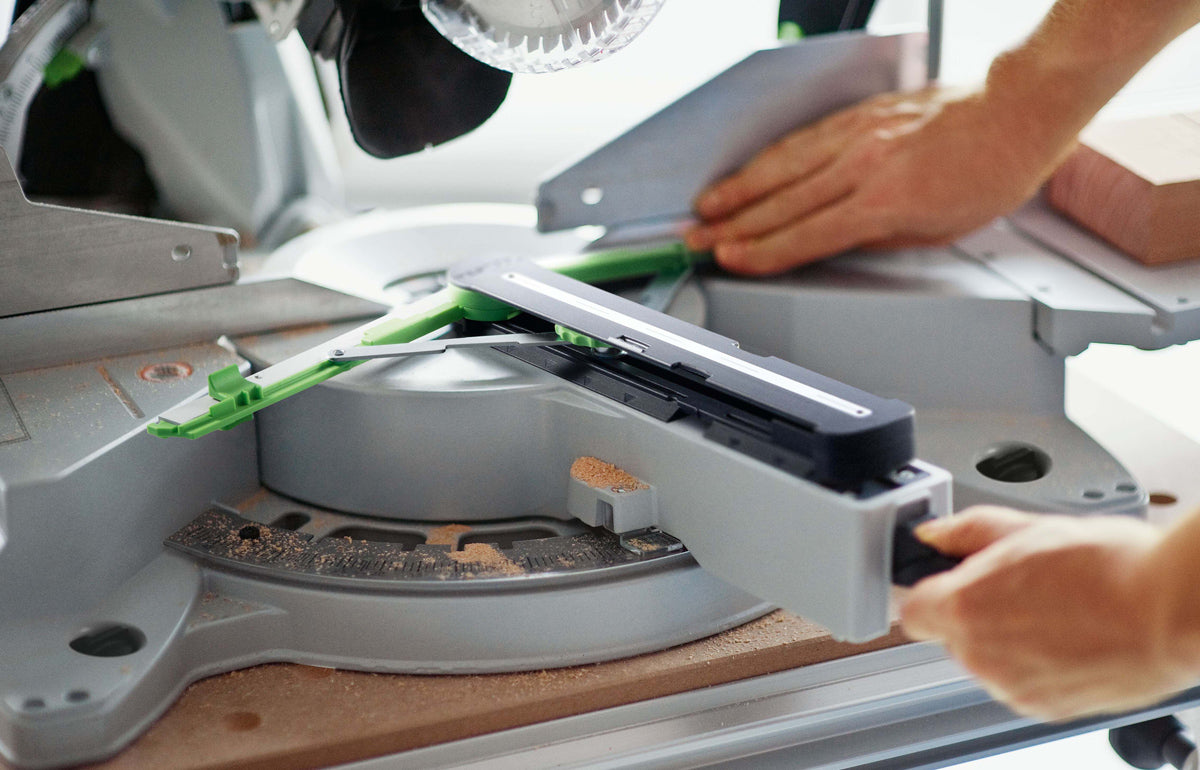

- Smart Bevel
- Work Piece Clamp
- Tool Manual
Performance Features:
 |

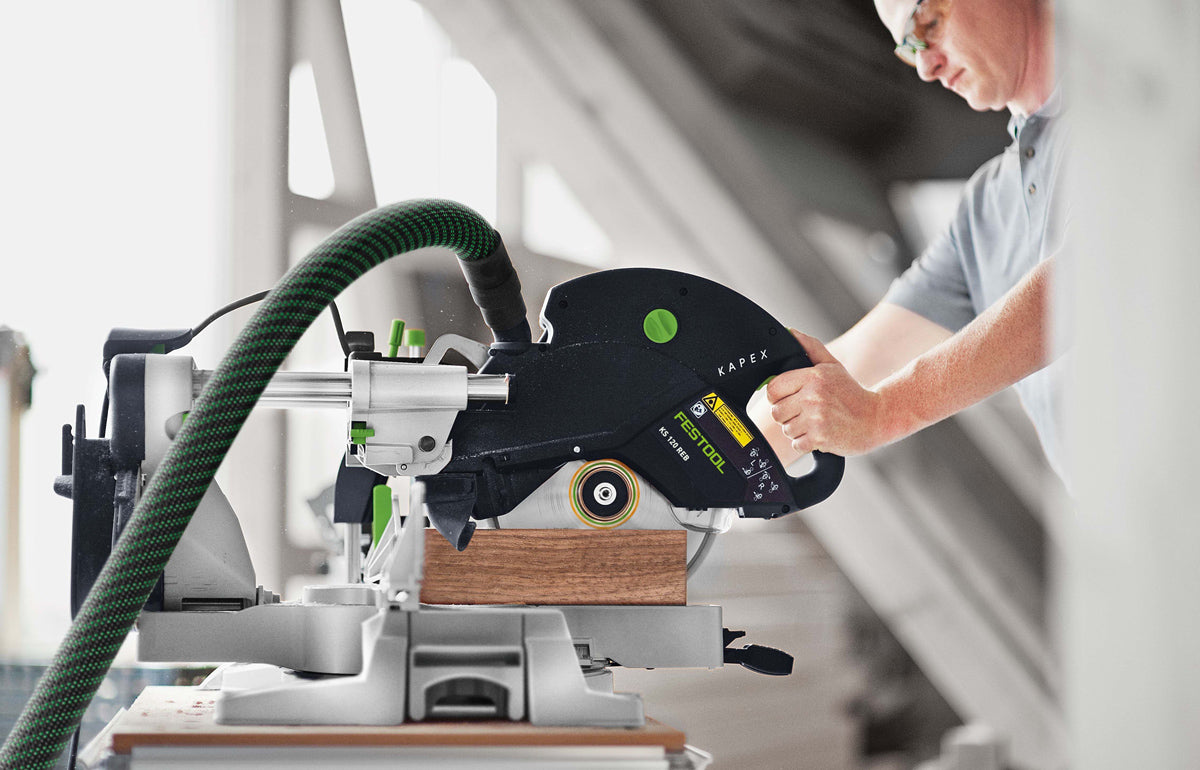

CLEANTEC Dust Extraction
Standard adapter (27/36/50 mm) for dust extraction to safeguard the operator and the environment.
|
 |
MMC Electronics
Multi Material Control power electronics with adjustable constant speed and temperature monitoring for work with all types of materials.
|
 |

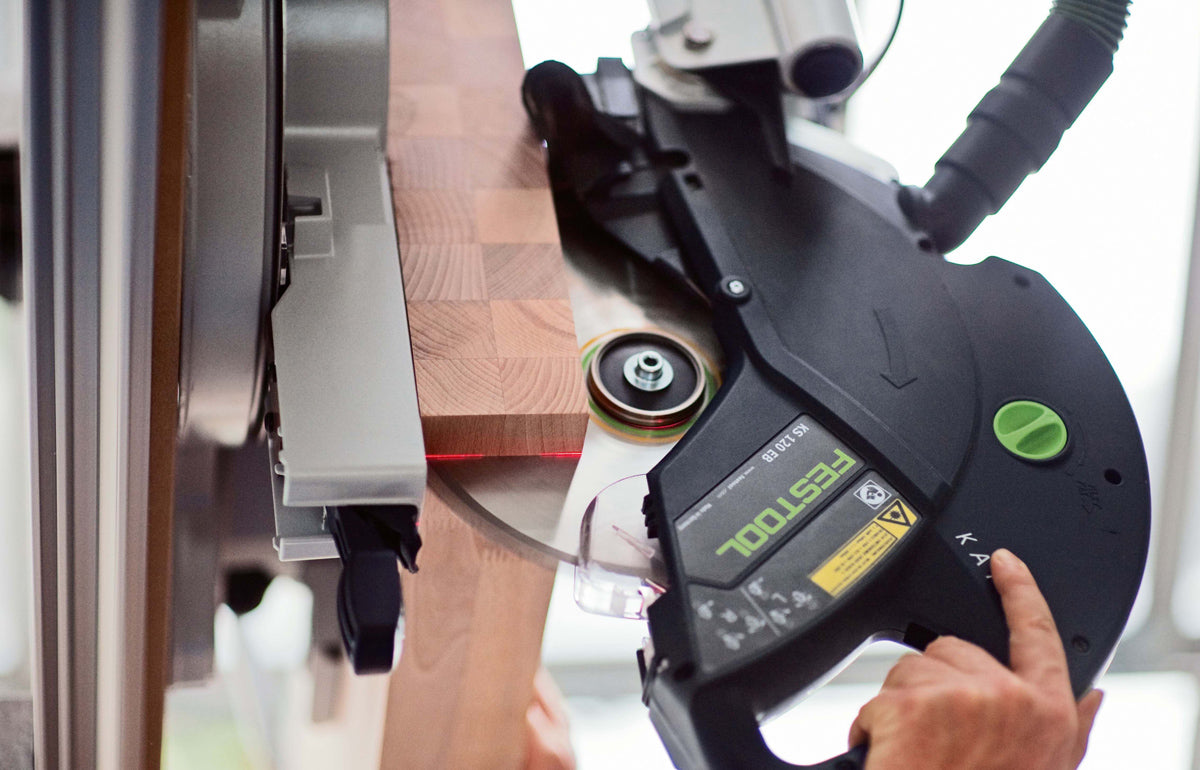

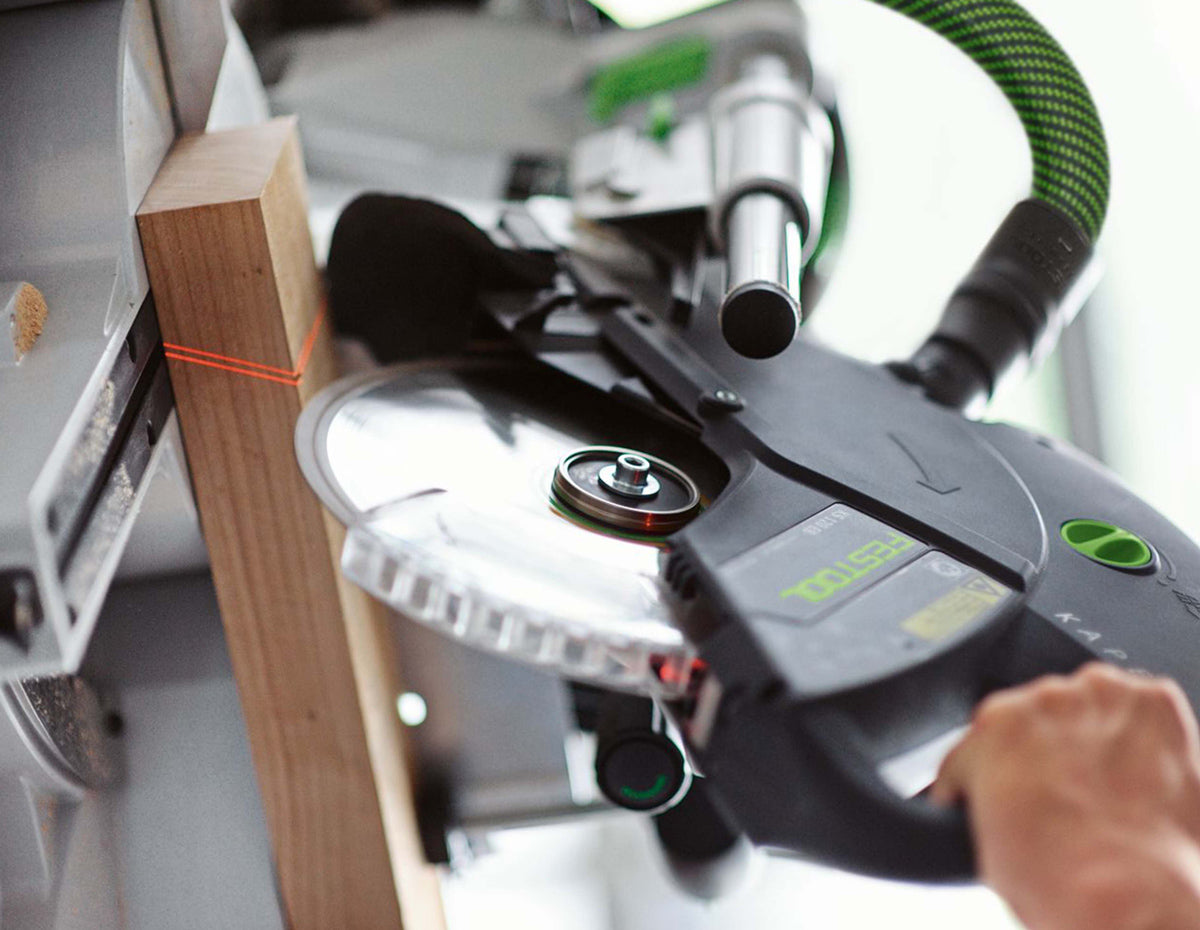

Dual Line Laser
Two laser lines for simple, precision positioning along the scribe mark from the left or right.
|
 |
FastFix
Makes changing accessories or consumables for routing, sawing, planing, sanding, drilling and screwdriving tools easier.
|
 |
Quick Acting Brake
For safe work when planing, sawing and routing.
|
